Unistrut Pipe Clamp Assembly G: 76mm OD

Unistrut Pipe Clamp Assemblies & Kits

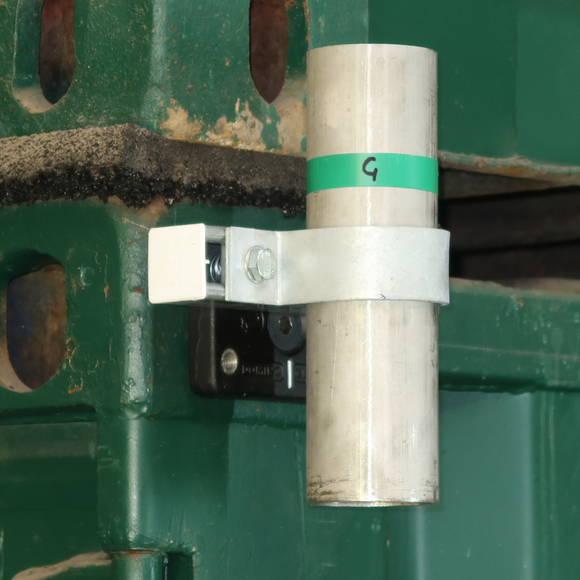

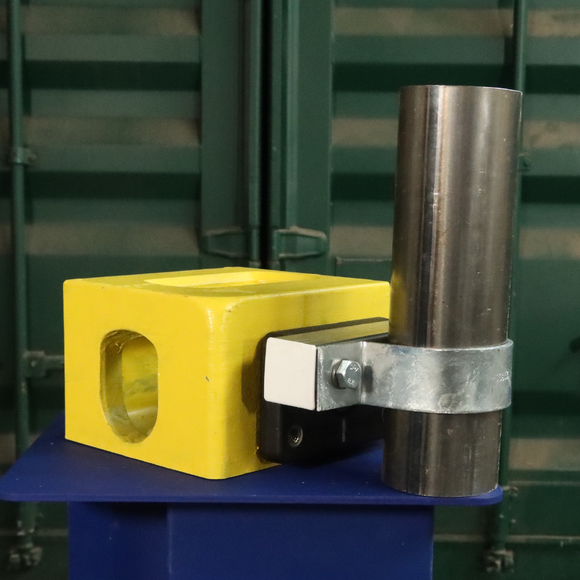

A short length of Unistrut framing channel with a pipe clamp to attach a tube to a shipping container either horizontally or vertically.

Choose between the assembly or kit using the dropdown menu beneath the ‘add to cart’ button.

Choose your option:

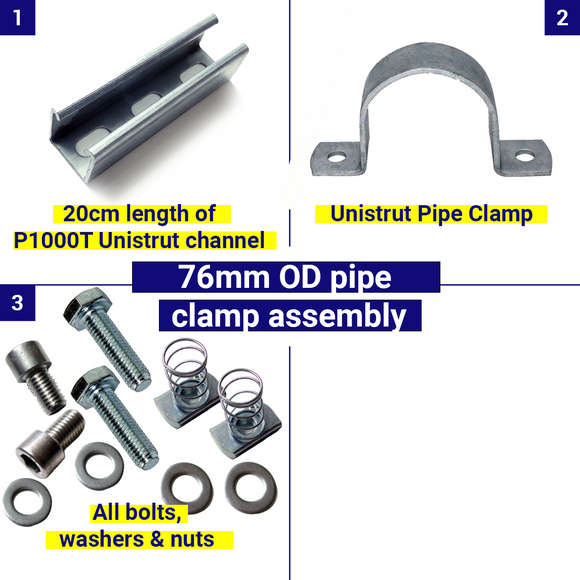

• Pipe clamp assembly only: includes everything you need to attach the pipe to the Domino Clamp.

The clamp comes complete with two screws and washers for attaching it to the Domino Clamp. You will need (1x) Domino Clamp to complete this assembly and attach your own tube.

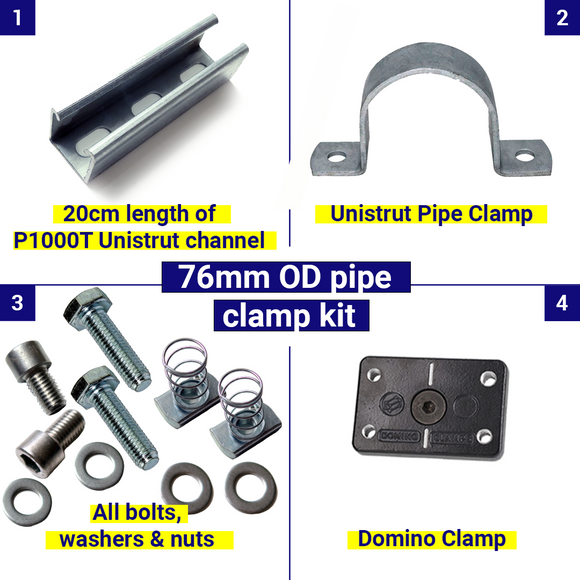

• Pipe clamp assembly full kit: includes the assembly and the Domino Clamp itself.

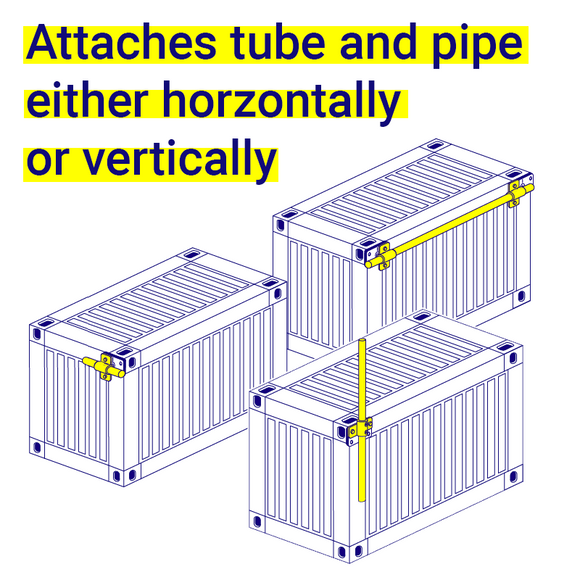

The assembly bolts onto a Domino Clamp using the socket cap screws provided and can be used to attach the tube either horizontally or vertically.

Up to two assemblies can be attached to a single Domino Clamp at the same time for additional support.

Available in a range of sizes from 21mm - 114mm:

21mm
Outside Diameter: 21.3mm, 0.83"
Pipe Size:  DN 12.7mm, 0.50" NPS, 0.50" NB

27mm
Outside Diameter: 26.7mm, 1.06"
Pipe Size: DN 19.05mm, 0.75" NPS, 0.75" NB

34mm
Outside Diameter: 33.7mm, 1.34"
Pipe Size: DN 25.4mm, 1.00" NPS, 1" NB

42mm
Outside Diameter: 42.4mm, 1.66"
Pipe Size: DN 31.75mm, 1.25" NPS, 1.25" NB

48-50mm
Outside Diameter : 48-50mm, 1.9"
Pipe Size: DN 40mm, 1.5" NPS , 1.5" NB

60mm
Outside Diameter: 60.3mm, 2.375"
Pipe Size: DN 50mm, 2" NPS , 2" NB

76mm
Outside Diameter: 76.1mm, 2.375"
Pipe Size: DN 65mm, 2.5" NPS , 2.5" NB

89mm
Outside Diameter: 88.9mm, 2.875"
Pipe Size: DN 80mm, 3" NPS , 3" NB

114mm
Outside Diameter: 114.3mm, 4.5"
Pipe Size: DN 100mm, 4" NPS , 4" NB

Our Unistrut pipe clamp assemblies allow you to attach a wide range of pipe and tube to a shipping container, including sizes both smaller and larger than our steel tube clamps range.

Key-Features

▶ Securely bolts onto a Domino Clamp using the socket cap screws provided
▶ Can be used to attach the tube either horizontally or vertically
▶ Possible to attach up to two assemblies to one single Domino Clamp for additional support
▶ Mechanical Support, no welding or drilling required

Confused about tube and pipe sizes? Check this article for information on tube & pipe sizes (metric and imperial).

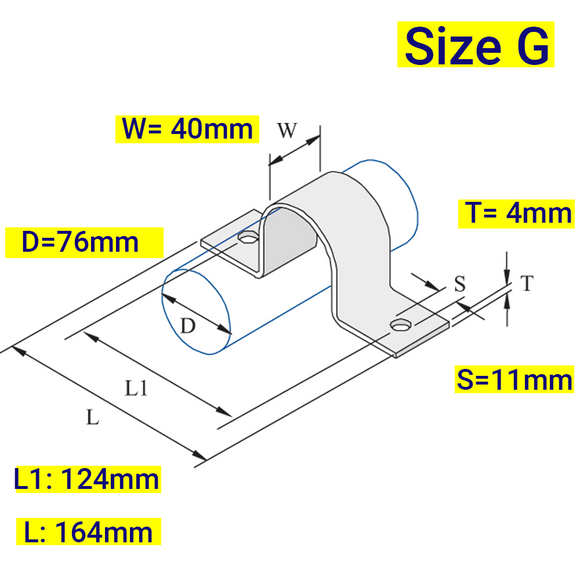

Technical Specifications - Unistrut pipe clamp assembly

Other sizes available in the range: Please contact us with your requirements.
