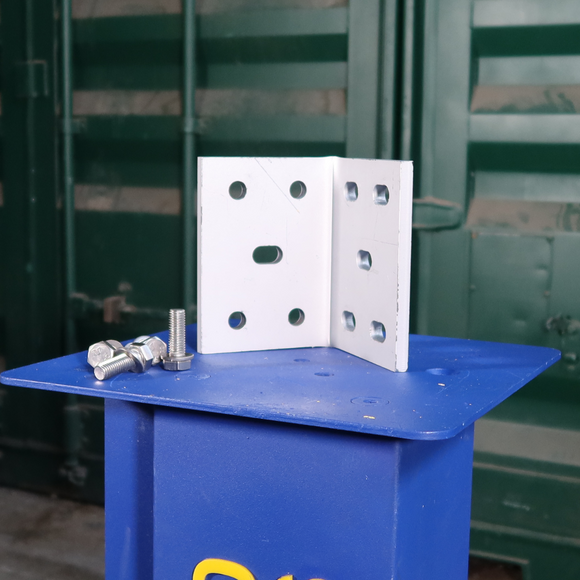

Angle Mounting Bracket
Mounts solar panels, attaches timber, frames, studs, lean-to structures, roofs, and more to the exterior of your shipping container, with a Domino Clamp. This container bracket doubles the number of attachment points of those on the Domino Clamp.

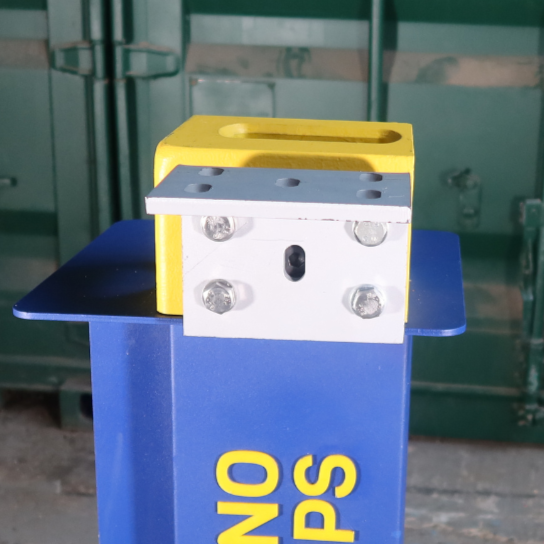

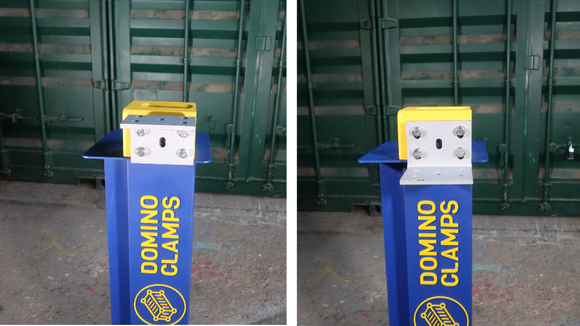

The height of the Angle Mounting Bracket can be adjusted so that the bracket meets the top of the container.

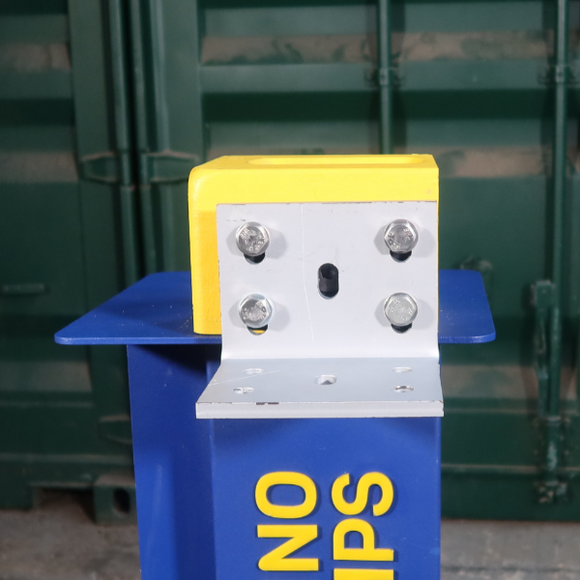

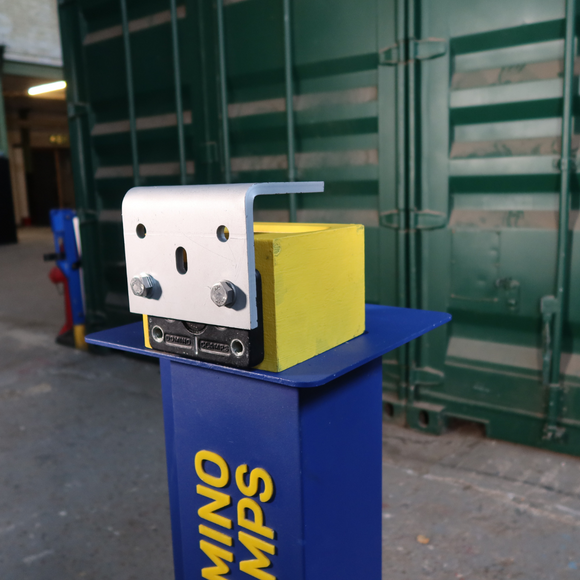

Can be reversed to provide a mounting point on top of the shipping container as well as on the side.
Can be used on the bottom corner casting to anchor the container to the ground.
The bracket can also be used in conjunction with our entire range of tube clamps - meaning that you can attach two tube clamps to a single corner casting; one on the side, and one on top.
Key-Features
▶ Five holes/slots on each face for multiple mounting options.
▶ Adjustable height option to mount flush with roof or floor.
▶ Provides both Top and Side mounting options, simultaneously.
▶ Use to secure a container to the ground.
▶ Mechanical Support, No welding or drilling required.
Technical Specifications - Angle Mounting Bracket for Shipping Containers
| Plate steel dimensions: | 150x120x10mm (see graphic for details) |
| Bracket arm length: | 120mm |
| Compatibility: | Compatible with standard M12 threads on Domino Clamps |
| Corrosion resistance: | Hot-dip galvanised finish for superior corrosion resistance |
| Additional Hardware: | Includes M12x30mm set screws and washers required for attaching it to the Domino Clamp. *Domino Clamp required. |
