Horizontal Tube Clamp - 48mm (Parallel)

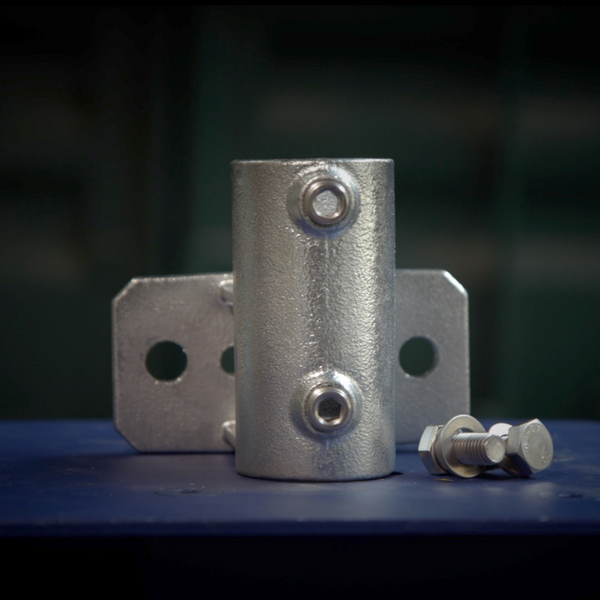

A single horizontal (parallel) tube clamp.
The clamp comes complete with two M12 x 30mm hex head set screws and two M12 washers. You will need (1x) Domino Clamp to complete this assembly and attach your tube to a shipping container.
Use these steel tube clamps to attach pipe or tube horizontally (parallel) to your shipping container.
Use a horizontal pipe or tube to hang decorative or advertising banners, or as the start of a more elaborate tube and clamp framework.
Available in One size only:
48mm:
Outside Diameter: 48.3mm, (1.9")
Pipe size: DN 38.1mm, 1.5" NPS , 1.5" NB
Key-Features
▶ Used to attach short tube horizontally to a shipping container
▶ Secures steel scaffolding, galvanised or aluminium tubes, ERW welded tubes
▶ Compatible with pipes and tubes of nearly any material, including drain and water pipes
▶ Mechanical Support, no welding or drilling required
Technical Specifications - Horizontal Tube Clamp
|
Compatibility: |
Compatible with standard M12 threads on Domino Clamps |
| Corrosion resistance: | Screws & fittings: Zinc plate Domino Clamp: Zinc & Xylan |
| Complete contents: |
(1x) Horizontal tube clamp (parallel) |
