Vertical Tube Clamp Set - 34, 42, 48mm (Long Pole)

Artikelnummer: TC-V-34-PAIR

ÂŁ28.20

* zzgl. Versandkosten

Wieder VerfĂĽgbar

Weltweit versandt

Vertical Tube Clamp Set (Long Pole)

Vertical tube clamp set suitable for a long diameter tube.

Available in three sizes: 34mm, 42mm, 48mm.

One clamp remains unbored, while the other is bored through, meaning that the tube is able to pass all the way through the clamp.

The clamps come complete with four M12 x 30mm hex head set screws and four M12 washers. You will need (2x) Domino Clamps to complete this assembly and attach your  tube.

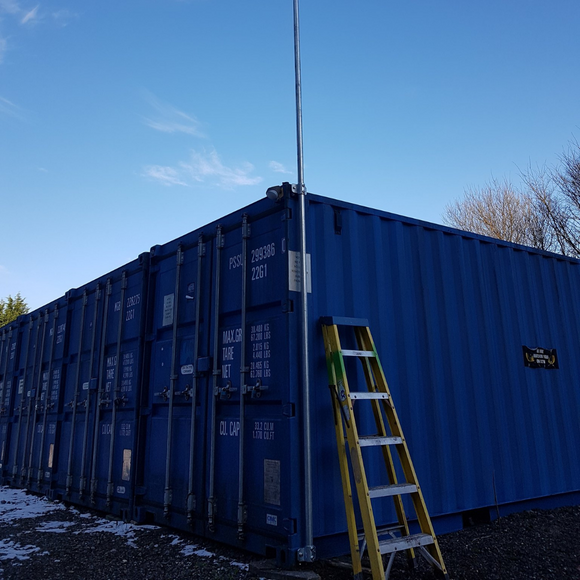

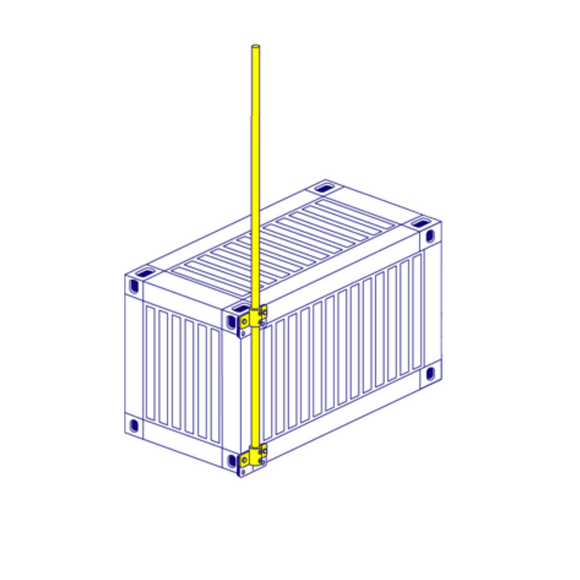

Use these steel tube clamps to attach pipe or tube vertically to your shipping container

This will be convenient as a fixing point for a wide range of other attachments. Floodlights, CCTV cameras, and wireless communication transmitters and receivers all benefit from elevated positioning with our vertical tube clamp set (bored and unbored).

Lightweight attachments such as smaller CCTV cameras, flags, signage and smaller LED lighting can be mounted with a single vertical tube clamp on the top corner casting.

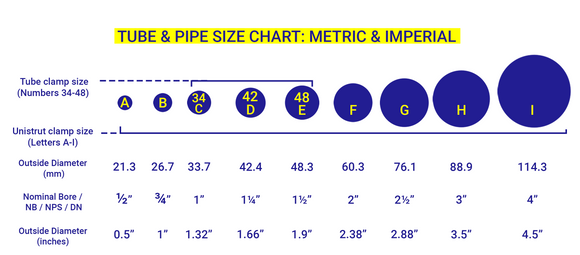

Available in a range of sizes from 34mm to 48mm:

34mm | OD: 33.7mm, 1.315" | ID: 25.4mm, DN 25.4mm, 1" NPS , 1" NB

42mm | OD: 42.4mm, 1.66" | ID: 31.75mm, DN 31.75mm, 1.25" NPS , 1.25" NB

48mm | OD: 48.3mm, 1.9" | ID: 38.1mm, DN 38.1mm, 1.5" NPS , 1.5" NB

Key-Features

▶ Used to attach long tube vertically to a shipping container
â–¶ Secures steel scaffolding, galvanised or aluminium tubes, ERW welded tubes
â–¶ Secures objects with tubular stands or bases
â–¶ Compatible with pipes and tubes of nearly any material, including drain and water pipes

â–¶ Mechanical Support, no welding or drilling required

Pipe and tube sizes for shipping containers



Technical Specifications - Vertical Tube Clamp Set (Long Pole)

Compatibility:
Compatible with standard M12 threads on Domino Clamps
Corrosion resistance:     Screws &  fittings: Zinc plated
Domino Clamp: Zinc & Xylan

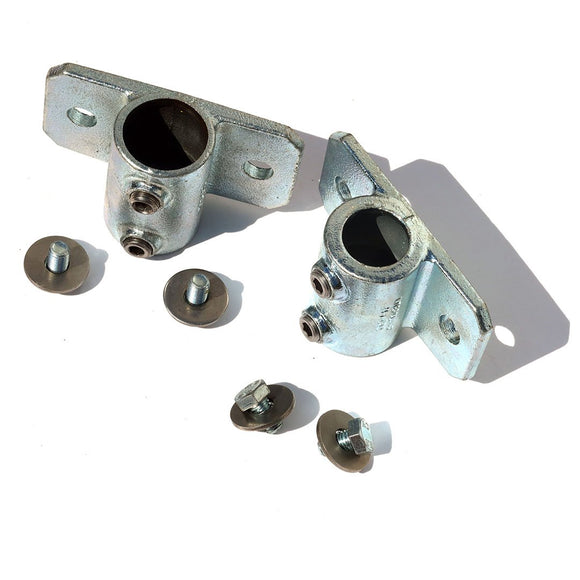

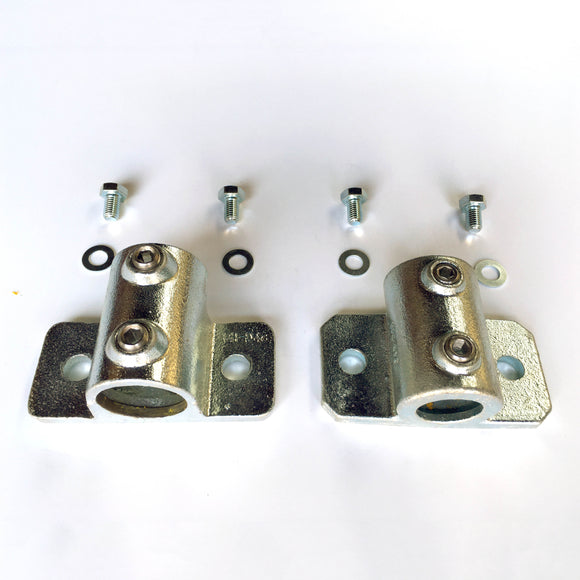

Complete contents:

(2x) Vertical tube clamps bored/unbored
(4x) M12x20mm socket cap screw
(4x) M12 Form A washer




Want to know how to attach these tube clamps to your container?


Check our YouTube videos showing you how to attach tubes to your container.

Read our article “The ultimate guide to metal tube” showing you how to attach metal tube in all possible orientations.
